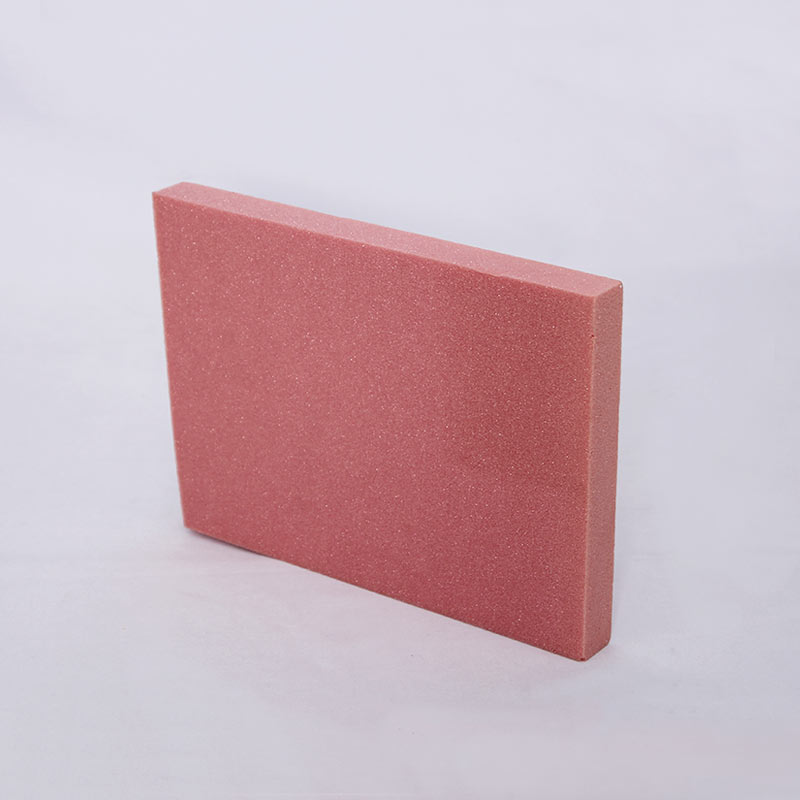

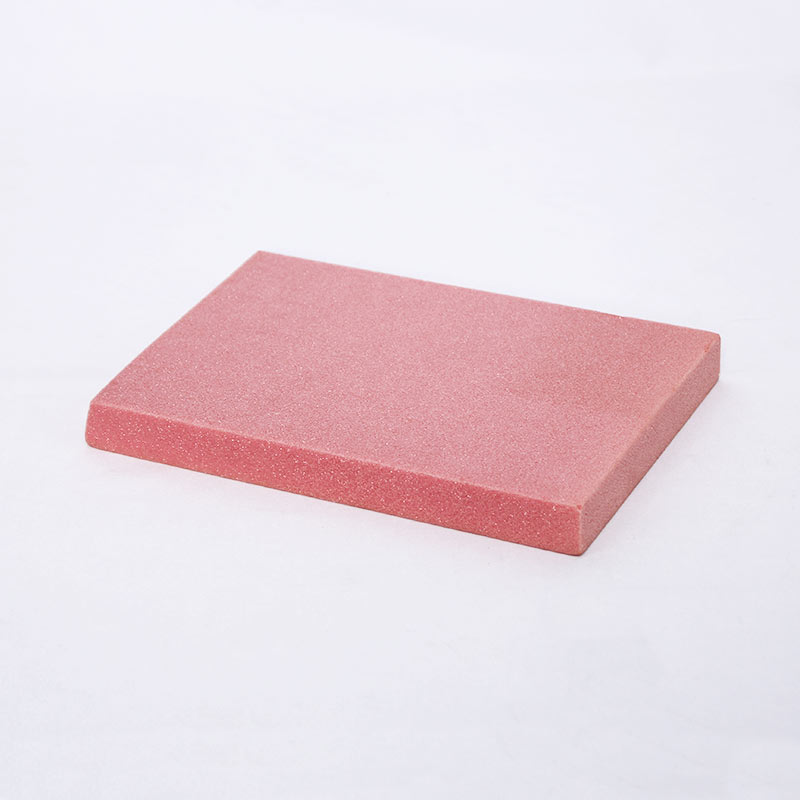

KV100 PVC Structural Foam Core Pink 100 kg/m³
The KV100 PVC structural foam core is a kind of pink color rigid foamcore with a 100 kg/m³ density, it has a good performance in stiffness, specific strength, fatigue resistance, impact resistance, etc. So, it has a wide range of uses in wind energy, ships, sports equipment, railway locomotives, and aerospace.
PVC Structural Foam Core
- Item: KV100 PVC Structural Foam
- Density: 100 kg/m³ (90-110 kg/m³)
- Strength of Compression(ISO 844:2006): 2.2MPa
- Modulus of Compression(ISO 844:2006): 180MPa
- Strength of Tensile: 2.5MPa
- Modulus of Tensile: 180MPa
- Strength of Cutting: 1.5MPa
- Modulus of Cutting: 40MPa
- Foam standard size: 2050*1050*70mm
- Description
- Other Specifications
- Custom
- Reviews (0)
Description
KV100 Description
KV100 PVC Structural Foam is characterized by its lightweight yet strong structure, offering superior durability and stability under various conditions. Its low thermal conductivity and wide temperature range make it suitable for use in environments requiring thermal insulation and stability. Additionally, the KV100 PVC Structural Foam Core’s excellent electrical properties, including a low dissipation factor and dielectric constant, make it a valuable material in electrical insulation applications.
This versatile material can be used in a variety of industries including construction, transportation, and marine applications, where weight savings, thermal insulation, and mechanical strength are critical. The KV100 PVC Foam Core provides an optimal balance of performance and efficiency, ensuring reliability and longevity in demanding environments.
For more PVC foam cores, welcome to contact us to see them.
KV100 PVC Foam Core Other Specifications
| KV 100 Specifications | Size/mm | |
| Block | Length | 2050 |
| Width | 1050 | |
| Thickness | 70 | |
| Profile Plate | Length | 1025 |
| Width | 1050 | |
| Thickness | 5-65 | |
| Flat Plate | Thickness | 1-60 |
| Category | Standard | Unit | KV100 |
| Thermal Conductivity | EN 12667 | W/(m·K) | 0.033 |
| Linear Thermal Expansion Coefficient | ISO 4897 | x10-6/°C | 40 |
| Heat Distortion Temperature | DIN 53424 | °C | 125 |
| Continuous Temperature Range | / | °C | -2.5 |
| Dissipation Factor | ASTMD 2520 | / | 0.0006 |
| Dielectric Constant | ASTMD 2520 | / | 1.11 |
| Poisson’s Ratio | D638-8 | 0.4 |
Noah Material also provides customized production services. For example, if you need PVC foam with a density of 280 kg/m³, we can custom this for you meanwhile, if you need to cut the foam shape or custom composite products, which is also available too.
